Smoke and Mirrors: Ultra-Rapid-Scan FT-IR Spectrometry

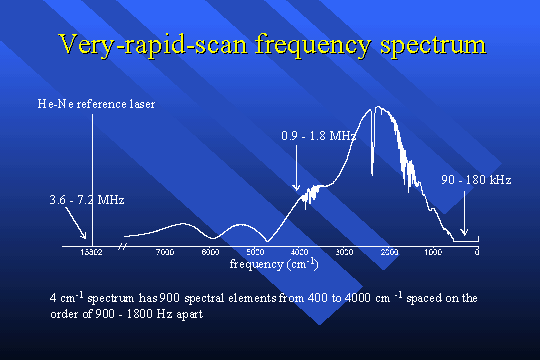

If the disk mirror in this rotating interferometer system is operated at full speed, then the laser will be modulated at frequencies between 3.6 and 7.2 MHz, while mid-IR radiation will be modulated at frequencies between 90 kHz and 1.8 MHz.
