Smoke and Mirrors: Ultra-Rapid-Scan FT-IR Spectrometry

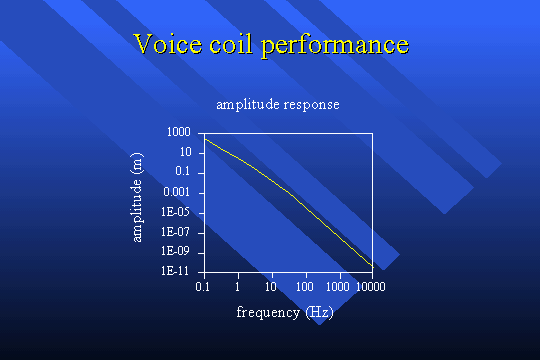

This plot shows the amplitude of voice coil (or solenoid) response as a function of frequency. On the left side the response drops as 1/f2 for purely mechanical reasons. On the right side where the effect of coil inductance becomes significant, the response drops as 1/f3. If the effects of eddy currents were considered, then the response would drop even faster.
