FT-IR Interferogram Sampling Validation and Correction

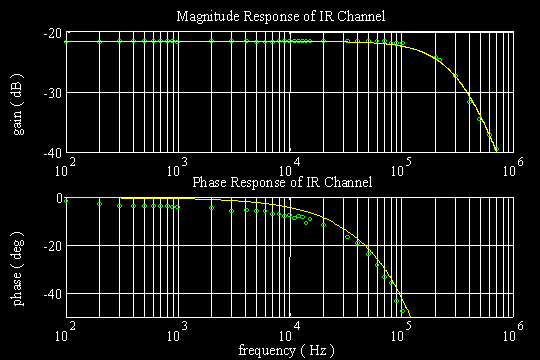

The green circles indicate the results obtained for the IR channel. The yellow line is a fit to a three-pole filter with all poles at 400 kHz. Because this is a 3-pole filter, the phase goes through an excursion of 270 degrees during rolloff. Only a portion of the phase shift can be seen here.
