FT-IR Interferogram Sampling Validation and Correction

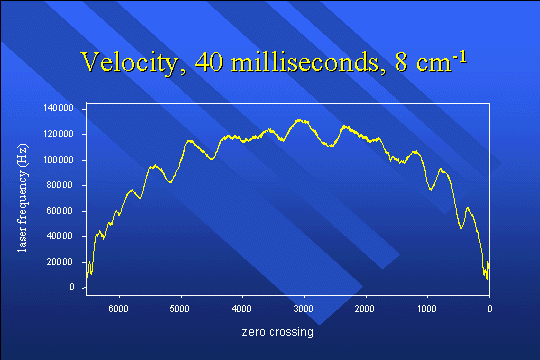

This is the velocity as a function of zero-crossing number for the spectrum in the previous slide. Beside the overall sinusoidal velocity profile, there is an additional 10% fluctuation due to vibration. This velocity profile and the next one were extracted the same way. The time spacing between adjacent zero crossings was converted to frequency by taking the reciprocal.
